Lecture 12 | Machine Language

Hack Machine Language

Instructions, symbols, and memory-mapped input/output.

Recap

The Hack Memory System

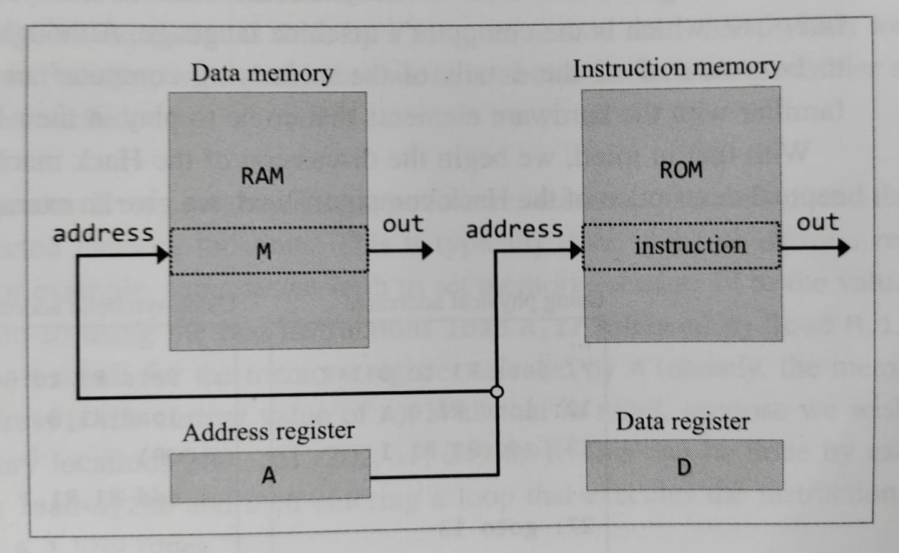

Hack architecture showing data memory RAM, instruction memory ROM, address register A, and data register D — Programmer-visible memory and registers

ROM stores program instructions.
RAM stores program data.
A can hold a value or select an address in RAM or ROM.
D stores and manipulates data.
M denotes the selected data-memory word, RAM[A].

Next: recall what small Hack programs look like.

Recap

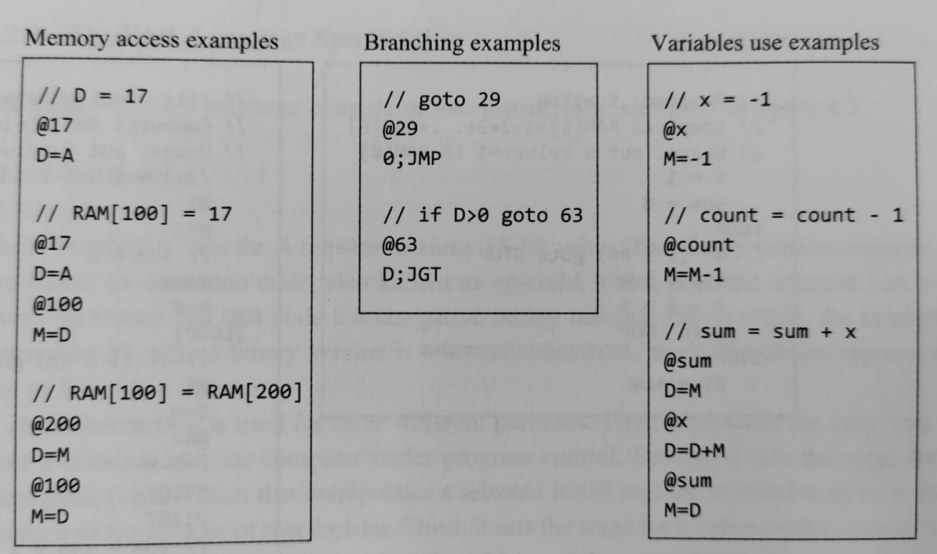

Hack Assembly Examples

In each example, identify where A is being used as a value, a RAM address, or a jump address.

Worked Example

Add the Integers from 1 to 100

Termination convention: In Hack, the program stops running when it enters an infinite loop. The infinite loop at the end is therefore the standard way to “terminate” a Hack program.

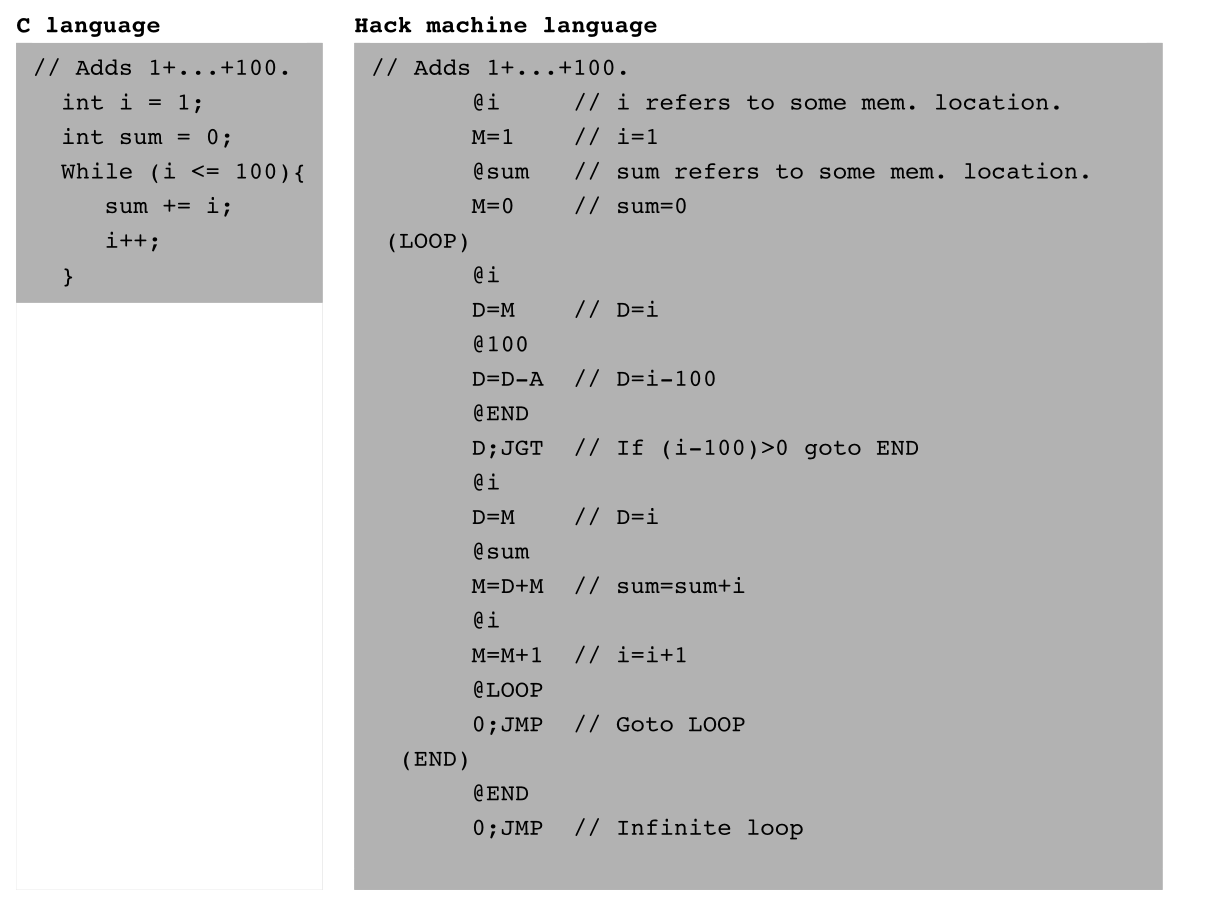

C algorithm and Hack assembly program that add the integers from 1 through 100 — High-level algorithm and corresponding Hack assembly

Next: specify the two instruction types used by this program.

A-Instruction

Loading the A Register

@value    // value is a non-negative decimal number
          // or a symbol that refers to such a number

The A-instruction stores the specified value in the A register.

0000 0000 0000 0111means@7

A-Instruction

Three Uses of `@value`

Enter a constant.@5 places the binary representation of 5 in A.

Select data memory.

@17    // sets A to address 17
D=M    // copies RAM[A], which is RAM[17], into D

Select a jump destination.

@17    // sets A to address 17
0;JMP  // jumps to address 17 in ROM;
       // the next instruction is read from ROM[17]

The same A register supports three roles; the following instruction determines how its value is interpreted.

Exercise 1

Read and Encode A-Instructions

A

What value does @21 place in A?

21

B

Give the binary form of the A-instruction @17.

0000000000010001

C

Decode 0000000000010001.

@17

D

Does @100 read RAM[100]?

No. It only sets A=100.

Next: introduce the instruction that computes, stores, and jumps.

C-Instruction

Symbolic and Binary Fields

A C-instruction computes a value, optionally stores it, and optionally jumps.

dest=comp;jump

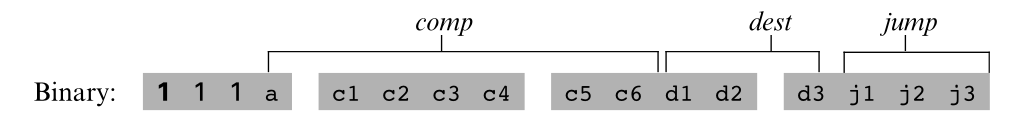

C-instruction binary format showing fixed 111 prefix and comp, dest, and jump fields — `111a cccccc ddd jjj`

111

Identifies a C-instruction; the two bits after the leading 1 are reserved and fixed to 1.

a cccccc

comp: what the ALU computes.

ddd

dest: where the result is stored.

jjj

jump: which instruction executes next.

If dest is empty, omit =. If jump is empty, omit ;.

Next: examine each field in order—computation, destination, then jump.

Exercise 2

Separate the Three Fields

For each symbolic C-instruction, identify dest, comp, and jump.

instruction	dest	comp	jump
`D=M+1`	D	M+1	empty
`D;JGT`	empty	D	JGT
`0;JMP`	empty	0	JMP
`MD=D-1`	MD	D-1	empty

C-Instruction | Computation

The Computation Specification

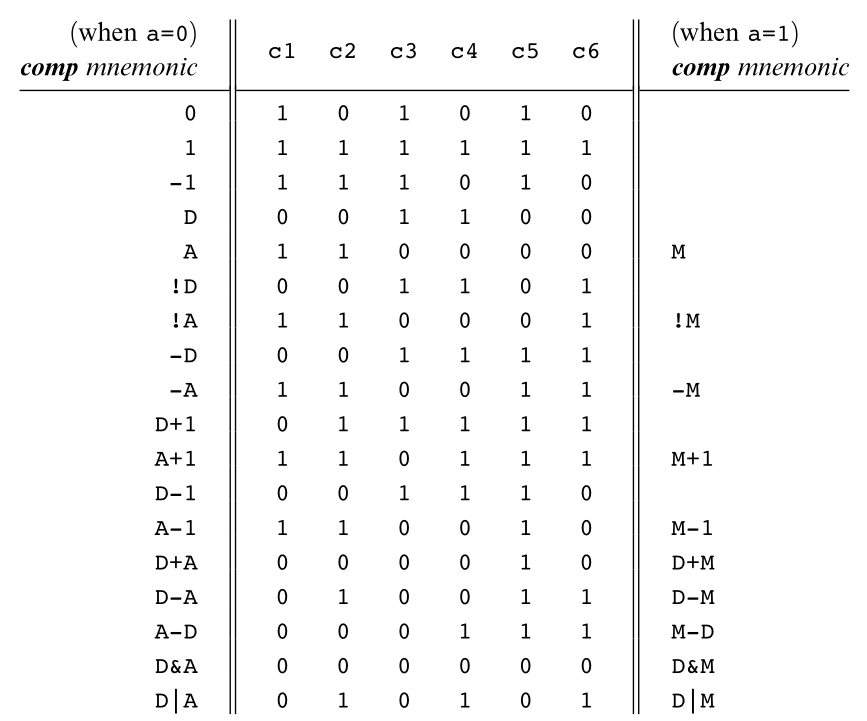

Table of Hack comp mnemonics and the a and six c bits — The 28 documented computations

C-instruction format highlighting the computation, destination, and jump fields — Recall the C-instruction fields

D and A name registers; M denotes Memory[A].
+ and - are 16-bit two's-complement operations.
!, |, and & are bitwise NOT, OR, and AND.
The a-bit chooses A or M; the six c-bits match the Hack ALU controls.
Seven bits could encode 128 patterns, but only these 28 functions are documented.

Example: compute D-1111 0 001110 000 000

The computation field 0 001110 asks the ALU for D-1. Destination and jump are both 000, so the result is neither stored nor used to jump.

C-Instruction | Computation

Encoding Computations

Start with the format 111a cccccc ddd jjj. Here, both destination and jump are empty, so their six bits are 0.

D-1111 0 001110 000 0001110 0011 1000 0000

D|M111 1 010101 000 0001111 0101 0100 0000

-1111 0 111010 000 0001110 1110 1000 0000

Changing A to M in a documented pair changes the a-bit from 0 to 1 while retaining the six ALU-control bits.

Exercise 3

Use the Computation Table

A

Find the seven comp bits for D+A.

0 000010

B

Find the seven comp bits for D+M.

1 000010

C

Is D*2 a documented comp mnemonic?

No

D

Encode !M with empty dest and jump.

1111 1100 0100 0000

Next: decide where the ALU result is stored.

C-Instruction | Destination

The Destination Specification

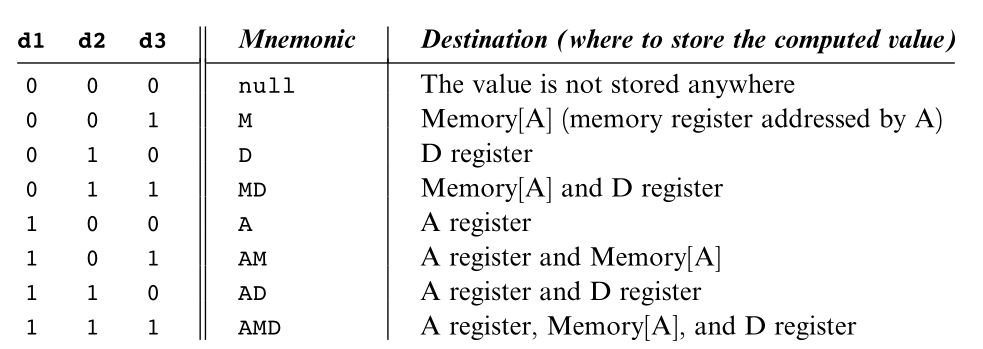

Table mapping the three destination bits to A, D, M, and combined destinations — The three destination bits

d1 stores the ALU output in A.
d2 stores it in D.
d3 stores it in M, meaning Memory[A].
Zero, one, or several destination bits may be asserted.

Example: D=A111 0 110000 010 000

The ALU outputs A. Destination bits 010 copy that result into D; jump bits 000 continue with the next instruction.

C-Instruction | Destination

Example: Store One Result in M and D

Increment Memory[7] and store the same result in D.

Assembly

@7
MD=M+1

Binary

0000 0000 0000 0111
1111 1101 1101 1000

@7 sets A=7, so M now denotes Memory[7].
M+1 is computed once.
The destination MD stores that one result in both Memory[7] and D.

Exercise 4

Choose the Destination Bits

desired destination	mnemonic	`d1d2d3`
D only	`D`	`010`
A and M	`AM`	`101`
A, D, and M	`AMD`	`111`
store nowhere	`null`	`000`

Next: use the ALU result to decide which instruction executes next.

C-Instruction | Jump

The Jump Specification

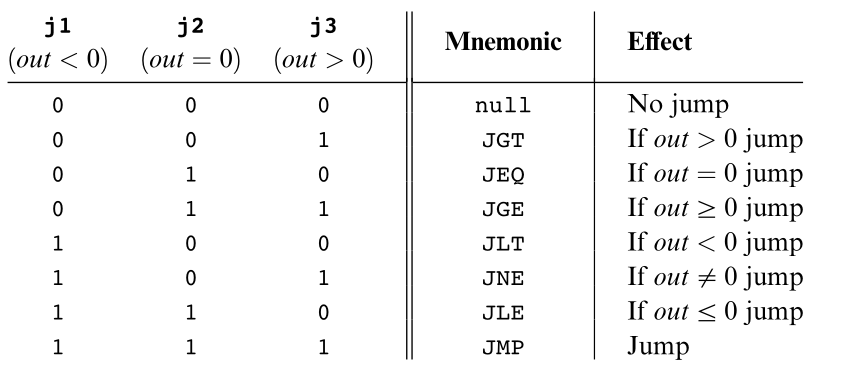

Table mapping the three jump bits to Hack jump mnemonics and ALU output conditions — Jump bits and conditions

Normally, execution continues with the next instruction.
For a jump, A must already contain the target instruction address.
The jump condition tests the ALU output produced by the same C-instruction.
j1, j2, and j3 enable jumps for negative, zero, and positive outputs.

Example: D;JGT111 0 001100 000 001

The ALU outputs D. Jump bits 001 make the computer continue from ROM[A] when D is positive; otherwise it executes the next instruction.

C-Instruction | Jump

Worked Example: Conditional and Unconditional Jumps

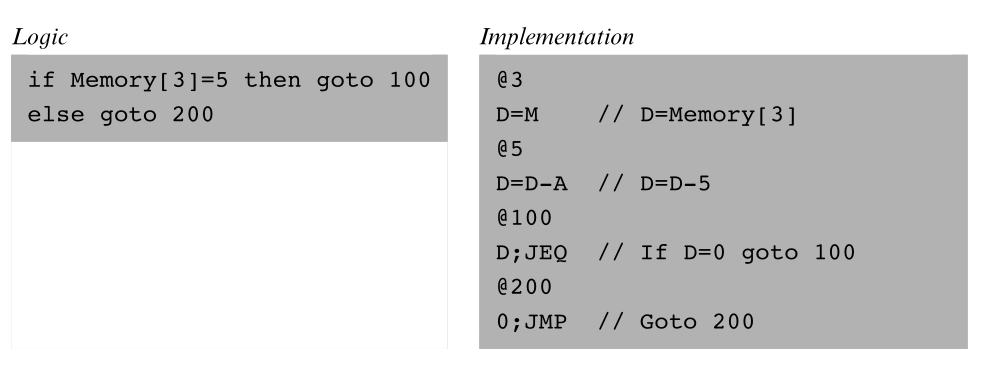

Hack assembly implementing if Memory 3 equals 5 then goto 100 else goto 200 — `out` is the ALU result; a taken jump continues at the instruction address in A

Why 0;JMP?

A C-instruction must specify a computation. For an unconditional jump the result is ignored, so 0 is a simple conventional choice.

Exercise 5

Will the Computer Jump?

Assume A already contains the target instruction address.

instruction	ALU output	jump?
`D;JGT`	7	Yes
`D;JGT`	0	No
`D;JLE`	-3	Yes
`0;JMP`	0	Yes

The A Register

Avoid Conflicting Uses of A

Data-memory roleA selects Memory[A]

A following instruction involving M treats A as a RAM address.

Jump roleA selects an instruction

A C-instruction with nonzero jump bits treats A as the target instruction address.

Programming rule

To prevent conflict, a well-written C-instruction that may jump should not also refer to M, and an instruction involving M should not also request a jump.

Next: replace hard-coded addresses with meaningful symbols.

Exercise 6

Which Instructions Avoid the Conflict?

D=MSafe: M, no jump

D;JGTSafe: jump, no M

M;JGTAvoid: M and jump

0;JMPSafe: jump, no M

Question

How Does Hack Identify the Instruction Type?

How does Hack know whether an instruction is an A-instruction or a C-instruction?

A-instruction format beginning with a zero bit — A-instruction

C-instruction format beginning with a one bit — C-instruction

The first bit reveals the type

0 means A-instruction; 1 means C-instruction. Hack can therefore identify the instruction type by inspecting its first bit.

Symbols

Three Ways Symbols Enter a Program

PredefinedKnown before assembly

Names such as R0, SCREEN, and KBD.

LabelsName instruction addresses

Declared using a pseudo-command such as (LOOP).

VariablesName allocated RAM words

New symbols are assigned RAM addresses beginning at 16.

Assembly commands may use a numeric address or a symbol that the assembler resolves to an address.

Symbols | Predefined

Predefined RAM Symbols

group	symbols	RAM addresses
Virtual registers	`R0`–`R15`	0–15
Pointers	`SP, LCL, ARG, THIS, THAT`	0, 1, 2, 3, 4
Input/output	`SCREEN, KBD`	16384, 24576

Two names may denote one address

For example, R2 and ARG both denote RAM address 2.

Symbols | Labels and Variables

User-Defined Symbols

Label symbol(LOOP)

Names the ROM address of the next real instruction.
The declaration produces no machine instruction.
A label is declared once but may be used before or after its declaration.

Variable symbol@count

A symbol that is neither predefined nor declared as a label.
The assembler assigns it a unique RAM address.
Allocation begins at RAM address 16.

Exercise 7

Classify and Resolve the Symbols

A

@R5

Predefined; RAM address 5

B

@SCREEN

Predefined; RAM address 16384

C

(LOOP)

Label; next ROM instruction address

D

@count, first new variable

Variable; RAM address 16

Next: use ordinary memory access to communicate with devices.

Input and Output

Memory-Mapped Devices

The Hack computer interacts with its screen and keyboard through designated RAM addresses.

Screen outputWrite to its memory map

Changing bits in the screen segment changes pixels on the physical display.

Keyboard inputRead its memory map

The keyboard's current key code appears in a designated RAM word.

Continuous refreshHardware keeps them synchronized

Programs use ordinary memory instructions; no special screen or keyboard instruction is needed.

Input and Output | Screen

The Screen Memory Map

Screen specification

Dimensions: 512 × 256 black-and-white pixels
Base address: SCREEN = 16384
Map size: 8K 16-bit words
One row: 32 consecutive words
Bit value: 1 = black, 0 = white

Pixel at row r, column c

Word address:

16384 + r × 32 + floor(c / 16)

Bit within that word:

c mod 16

Input and Output | Screen

Example: Draw the Top-Left Pixel

@SCREEN
M=1

@SCREEN sets A to 16384, the first word of the screen map.
That word controls the 16 left-most pixels of the top row.
M=1 sets its least significant bit to 1, blackening the top-left pixel.

Fun lab task

Draw a picture on the Hack screen by writing suitable bit patterns into the screen memory map.

Exercise 8

Locate Screen Pixels

A

Which RAM word contains row 0, column 17?

RAM[16385]

B

Which bit within that word represents column 17?

Bit 1

C

Which address begins row 1?

16384+32 = 16416

D

What values represent black and white?

1 = black; 0 = white

Input and Output | Keyboard

The Keyboard Memory Map

KBD denotes RAM address 24576.
When no key is pressed, RAM[24576] contains 0.
When a key is pressed, it contains that key's 16-bit code.
Ordinary characters use their usual codes; special Hack keys use the codes shown.

@KBD
D=M    // D receives the current key code

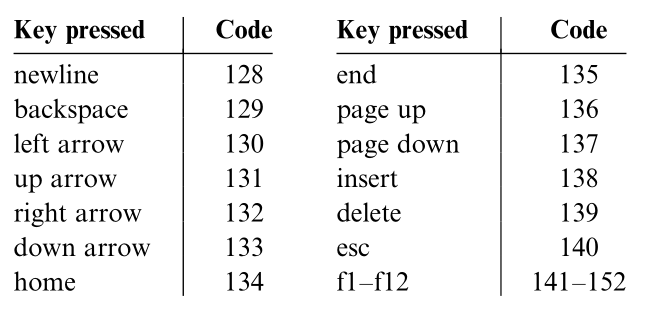

Hack keyboard codes for newline, arrows, home, end, page keys, insert, delete, escape, and function keys — Special keyboard codes

Fun lab task

Write a program that displays the key currently being pressed on the screen.

Exercise 9

Reason About Keyboard Input

A

After @KBD and D=M, what is D when no key is pressed?

0

B

What is D when the left-arrow key is pressed?

130

C

Which jump tests whether any key is pressed?

After D=M, use D;JNE.

D

Does reading KBD require a special input instruction?

No. It is an ordinary memory read.

Summary of This Lecture
